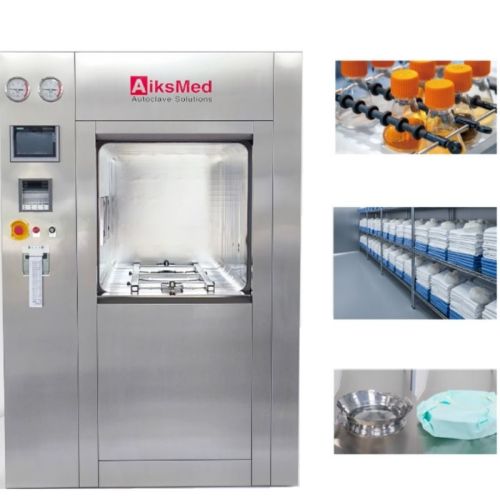

Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments

Share
Categories	Garments and Tools Steam Autoclave
Brand	AIKSMED Steam Autoclave Sterilizer Manufacturer
Model	MDH-0.36/0.45/0.55/0.65/0.8/1.0/1.2/1.5/2.6/3.2/5.2
Capacity	360L, 450L, 550L, 650L, 800L,1000L,1200L,1500L
Customized	Available
Application	Garments, Tools, Rubbers, Alu Caps, Liquids
Door	Single/Double, Vertical Sliding
Control Mode	Automatic & Manual
Steam	Built-in Generator/Evaporator
Loading	Shelve/Cart
FOB port	QINGDAO
Terms of Payment	L/C, T/T
Download
Update Time	Mar 2,2026

Detail Information

Applications

1. Pharmaceutical industry, biological safety laboratory, SPF animal laboratory, Hospital CSSD.

2. Garments, tools, apparatus, rubbers, aluminum caps, liquids, culture medium, etc.

Key Configurations

Chamber: Square and horizontal, material made of SS316L/304(Optional), Jacket made of SS304, pressure vessel, designed service life: 15 years.

Door: Hinged/Sliding doors(Optional), Single/Double doors(Optional)

Vacuum Pump: NASH

Pneumatic Valve: High temperature resistant angle seat pneumatic valve

Control System: PLC+HMI(SIEMENS)

Cycle: Textile+Tools+B-D test+Vacuum Leak Test

Temperature Sensor(PT100): Poratble and Fixed type

Pressure Transmitter: JEMS

Pressure Gauge: WIKA

Printer: Print Time, Temperature, pressure, F0, Cycle name, Batch No., etc.

Steam Generator: Optional.

Techinical Parameters

Specification
