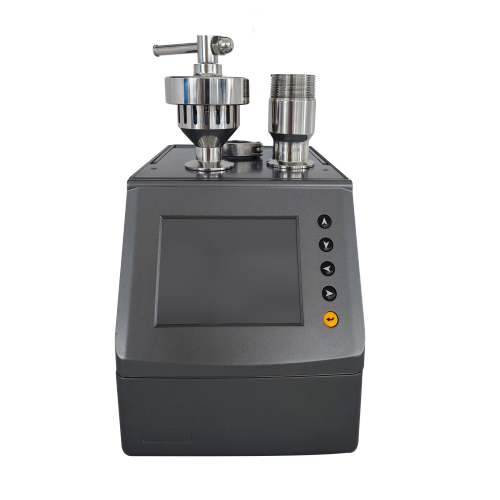

Temperature Validation Instrument System
| Share | |
|---|---|
| Categories | Validation Device |
| Brand | AIKSMED Steam Autoclave Sterilizer Manufacturer |
| Model | QT-3200, QT-3400,QT-6000 Series |
| Model | QT-3200 |
| Offline validation | with independent data storage |
| Number of probes | 1~64 thermocouple probes (quantity optional, supports T-type and K-type) |
| Moisture heat probe range | -100℃~150℃ |
| Dry heat probe range | 0℃~350℃ |
| Corrected accuracy | ±0.1℃ |
| Touch screen | 5.7-inch color touchscreen LCD |
| Sampling frequency | 1 S |
| Data saving interval | Data saving interval |
| Communication interface | TCP/IP |
| Input voltage | 220V AC |
| FOB port | QINGDAO |
| Terms of Payment | L/C, T/T |
Applications
1. Designed for the pharmaceutical, freeze-drying, biotechnology, medical device, and food industries.
2. Suitable for validation of heat distribution, heat penetration, steam sterilizers, dry heat sterilizers, constant temperature & humidity chambers, cold storage rooms, rotary sterilizers, ETO sterilizers, warehouses, and other temperature-controlled equipment.
Key Configurations
Features | Advantage |
|---|---|
Number of sensors | Supports 1-64 channels of sensors |
Sensor grouping | Supports 1-4 groups |
Sampling frequency | 1S~60S |
Storage frequency | 5S~1800s |
resolution | 0.01°C |
Temperature measurement range | -100~350°C |
Communication interface | TCP/IP |
Input voltage | 220V AC |
Operating ambient temperature | -10°C to 70°C |
Operating ambient humidity | 5%~95% (relative humidity, no condensation) |

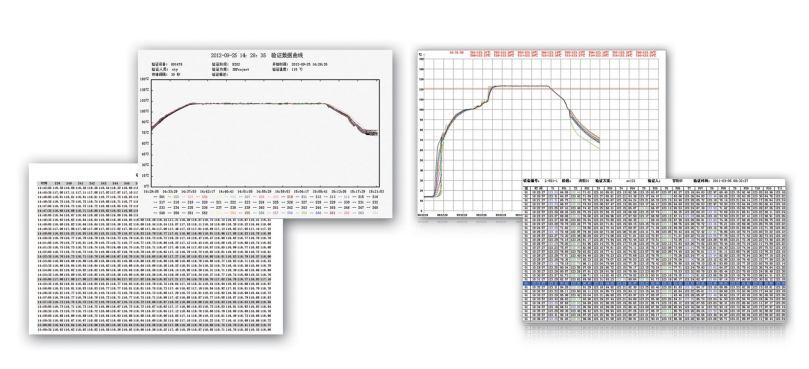

Data report curve report

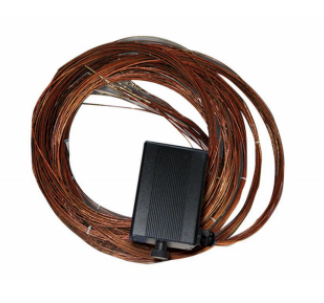

Temperature sensor
model | T-type thermocouple |
|---|---|
accuracy | +0.1℃ @ 40℃, ±0.25℃ @ 121℃, and ±1.2℃ @ 300℃. |
section | 2.41mm (width) * 3.05mm (length) |
Moisture heat probe outer sheath material | TEFLON can withstand continuous temperatures of 200°C. |
Dry heat probe outer sheath material | KAPTON can withstand 400℃. |
end cap | Polytetrafluoroethylene (PTFE) tubing is used for humid heat, while stainless steel tubing is used for dry heat. |
Humidity and heat numbering | The sensors use color combinations and wire/tube numbering. |
Dry heat number | The sensors are numbered using stainless steel number plates. |
Dry heat support | Fixed sensor during dry heat validation |
