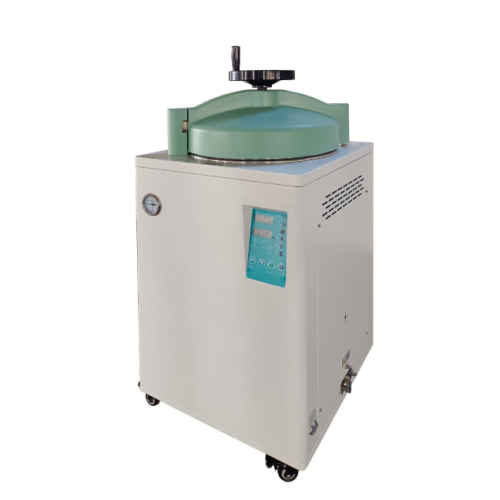

Laboratory Vertical Steam Sterilizers for Liquids | VSM-60/80/100L

Laboratory Vertical Steam Sterilizers for Liquids | VSM-60/80/100L

Laboratory Vertical Steam Sterilizers for Liquids | VSM-60/80/100L
Laboratory Vertical Steam Sterilizers for Liquids | VSM-60/80/100LLaboratory Vertical Steam Sterilizers for Liquids | VSM-60/80/100LLaboratory Vertical Steam Sterilizers for Liquids | VSM-60/80/100LLaboratory Vertical Steam Sterilizers for Liquids | VSM-60/80/100L
CategoriesVertical Steam Sterilizer VSM Series
BrandAIKSMED Steam Autoclave Sterilizer Manufacturer
ModelLABH-100S
Loading Capacity60L, 80L,100L
CustomizedAvailable
ApplicationFabrics, Liquids, Utensils, Instruments, etc.
DoorSingle, Pass-through/Double Doors(Optional)
Lead Time60~90 working days
Terms of PaymentT/T
Update TimeDec 3,2024
Detail Information
                                                      LABORATORY VERTICAL STEAM STERILIZER

            VSM Series Vertical Steam Sterilizers are used for textile, apparatus, and liquids solutions sterilization in Laboratory.

                                              AIKSMED provides wide range of volumes for options, including 60L, 80L, 100L

                                                   To adapt for space requirement, VSM Series have very compact structure

                                                                                           pressure safety interlock



                                                                      AIKSMED GUARDS LABORATORY SAFETY!
Application
Custom Laboratory Steam Sterilizer Autoclave for Laboratory sterilization of liquids, solids, utensils, wrapped waste, hazardous biological substances, etc.
AIKSMED sterilizer autoclave machine CSSD

AIKSMED sterilization autoclave machine BSL laboratory

AIKSMED sterilization autoclave machine surgical instruments

AIKSMED sterilizer autoclave machine laboratory culture medium

AKS-LABH Series

Model

Chamber Size

Chamber Volume

VSM-60

Φ400*510

60L

VSM-80

Φ400*675

80L

VSM-100

Φ400*840

100L

★★★Features:
Laboratory Steam Sterilizer
Built-in steam generator;

Low water cut-off function;

Housing, support frame, chamber made of corrosion-resistant stainless steel material;

Autoclave vessel is made of AISI304;

Design pressure up to 0.3MPa/3bar;

Safety valves for chamber and steam generator, with over-pressure protection;

Quick security door lock;

Door lock with durable, heat and pressure-resistant seal/gasket;

Touch screen(HMI) control;

Access code to prevent uncontrolled software changes;

Three-level authority management;

Portable PT-100 temperature sensor (Class A);

Display of sterilization temperature, time, F0 value in real time;

Validation port to test thermal distribution;

Equipped with pre-vacuum, gravity and pulse cycles;

 Filter cartridge pore size 0.22µm;




Laboratory Steam Sterilizer Jacket
Design
■ Advanced structure of chamber combined with jacket for faster heating-up and cooling, due to more contact areas.
■ Totally 4 chamber diameter are available
laboratory steam sterilizer steam generator
Steam Generation
■ Built-in steam generator with sectional heating-up control mode, saving water consumption.

AIKSMED sterilizer autoclave machine laboratory control cycle
Cycles:
■ Over 20 cycles for regular use, including 134℃ and 121℃ for fabric, apparatus, liquid, Class B biological, Class N, and Class S for liquid fast cooling, and etc.

autoclave sterilization equipment door
Door
■ Driven by door motor, with electric safety interlock, and pressure safety device.

Laboratory Steam Sterilizer Air Filter
Air inlet & Extract Filtration
Air exhaust can be sterilized in Place(SIP), PTFE element.

autoclave sterilization machine drainage
Drainage Cooling & Security System
Discharing temperature settable, it can reach 60℃.

Options:
Additional options on Hardware
■ Bio-safety Partition to separate sterile and non-sterile areas.
■ Air exhaust filtration safety system without release of infection pathogens.


Options on Cycles

■ Additional Cycles.
■ Three-level cooling function for liquid cycle.
■ Up to 5*PT100 Sensors.
■ Condensate re-sterilized inside chamber.
■ Condensate re-sterilized outside chamber.
Laboratory Steam Sterilizer Bioseal
VIDEO
AKS-LABH Series Bio-Safety Laboratory Autoclave
Sterilizer Loading Display
AKS-LABH Series Bio-Safety Laboratory Autoclave
Sterilizer Introduce
